33 kW hybrid + on-grid system in DHA Phase 1, Lahore. A large DHA Phase 1 home with a heavy bill and a need for backup through load-shedding. We split the array across a hybrid and an on-grid inverter so the house gets battery backup on essential circuits without paying hybrid prices for the whole system.
What we installed

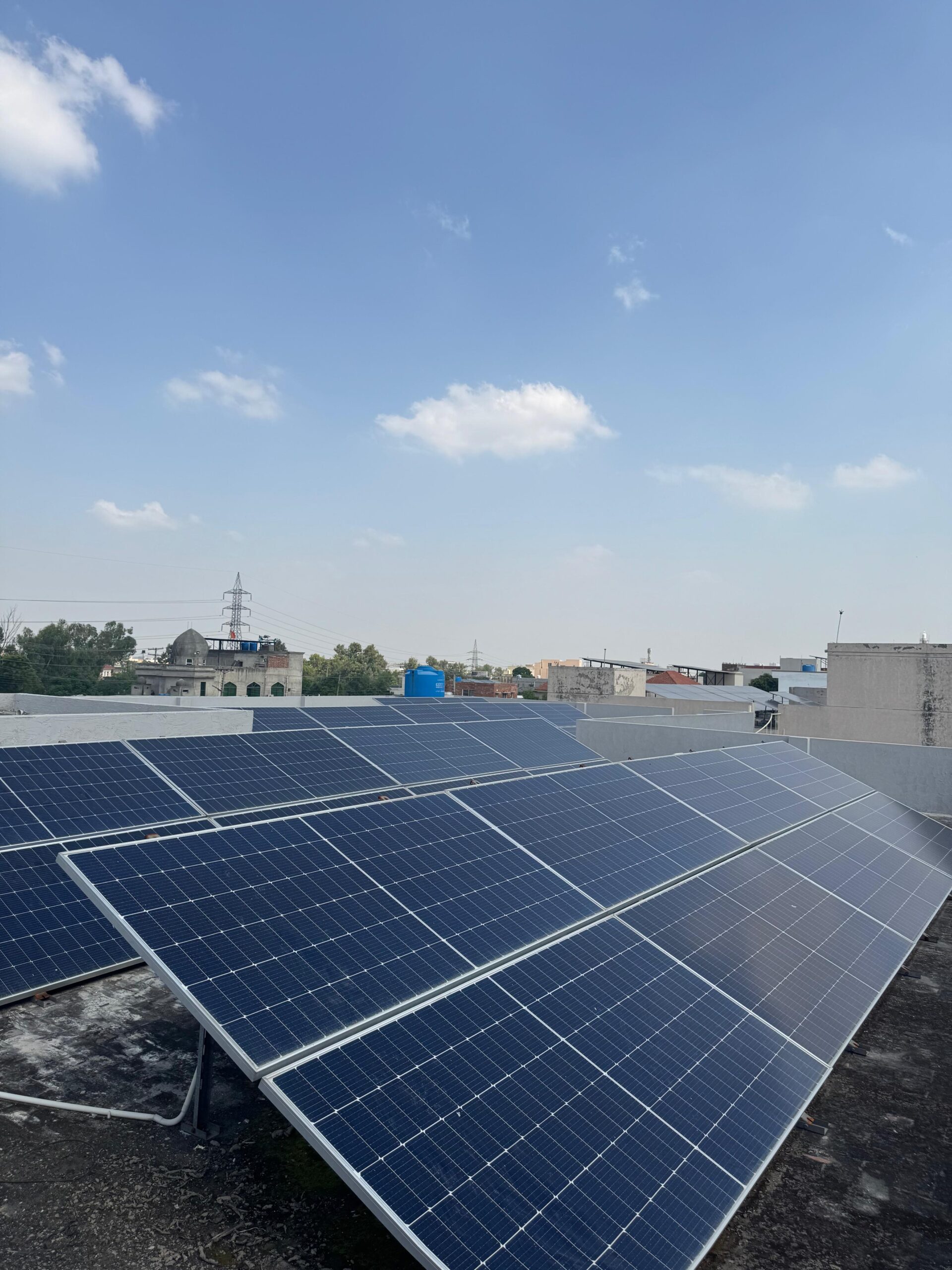

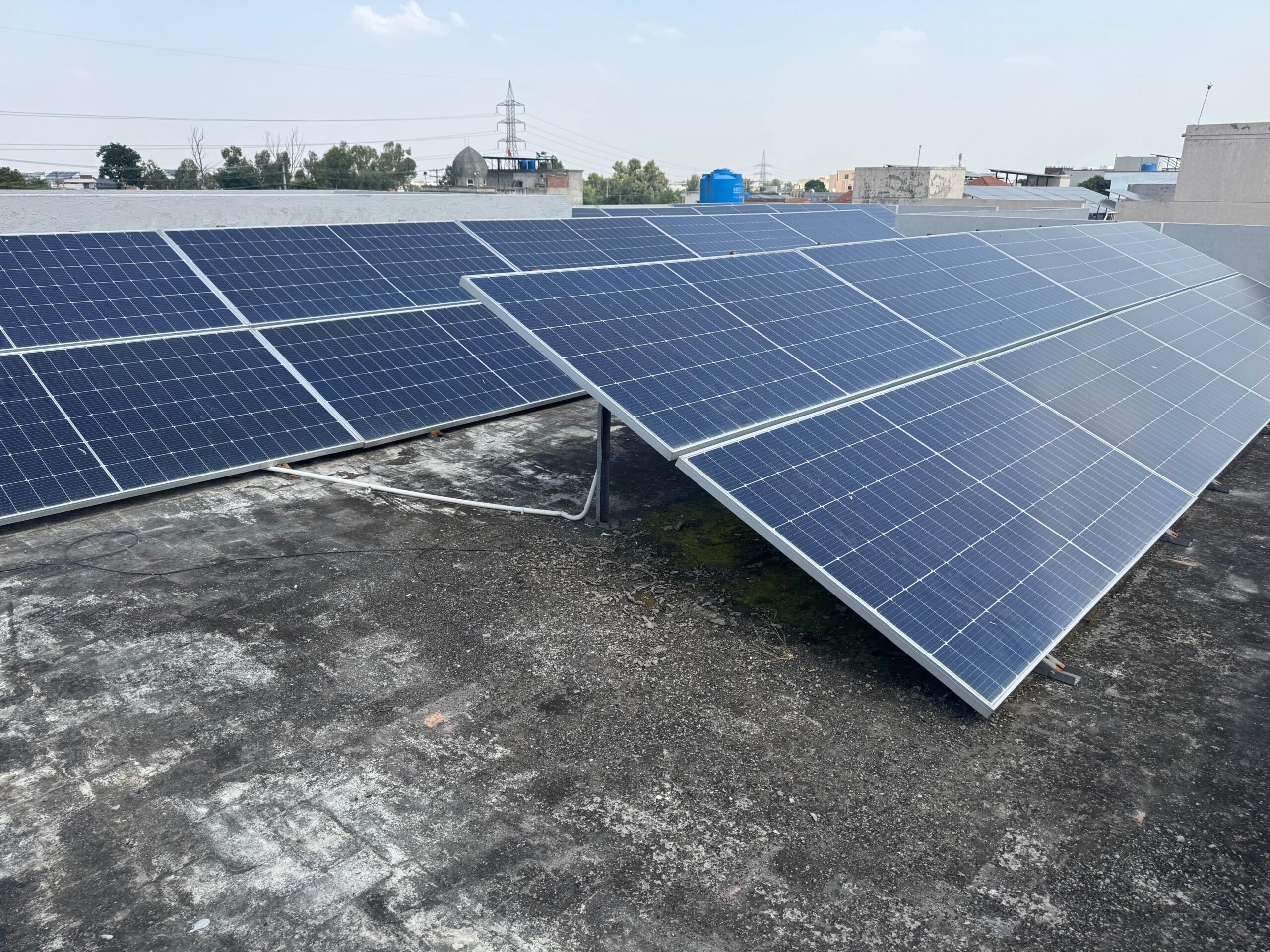

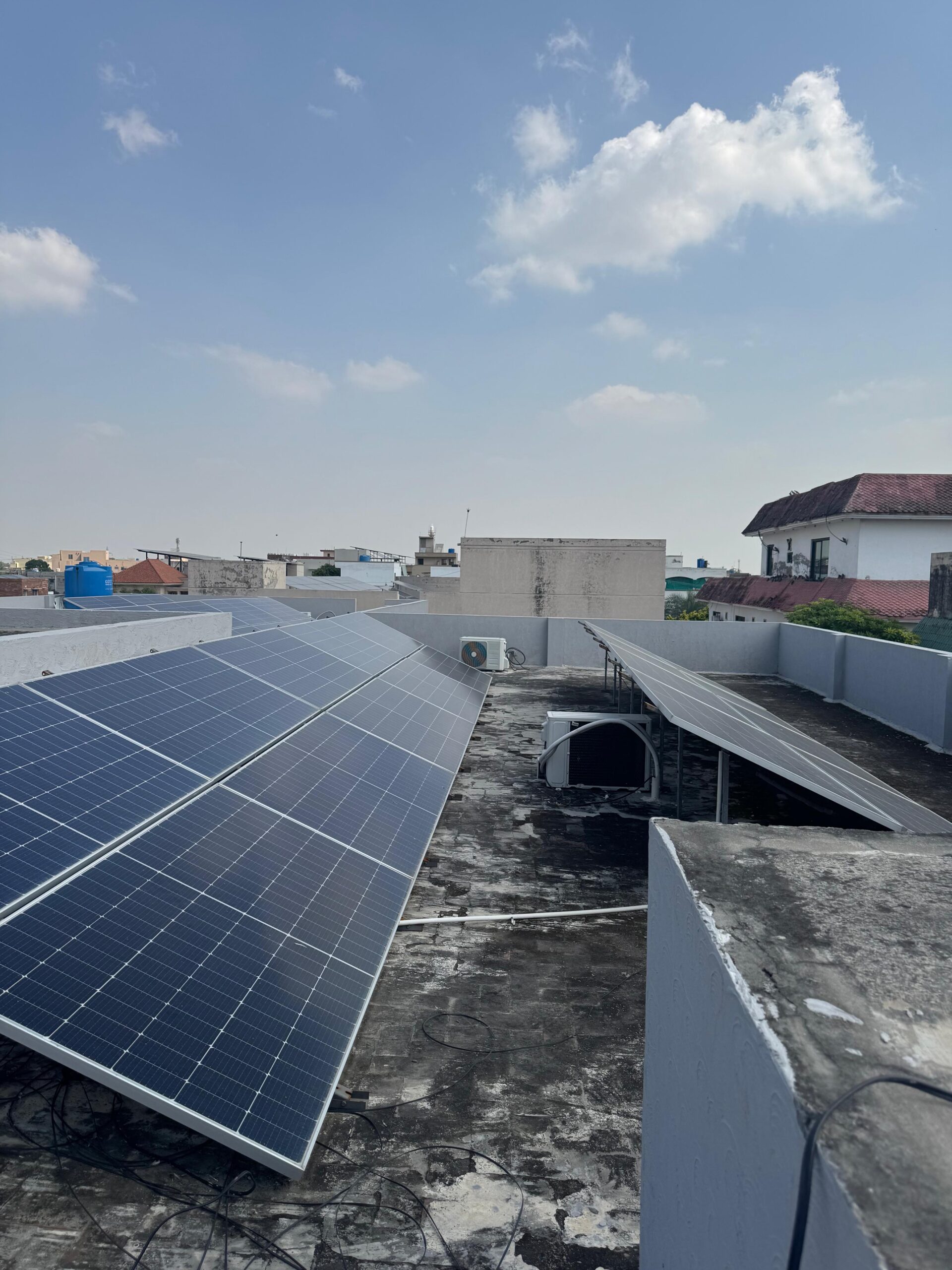

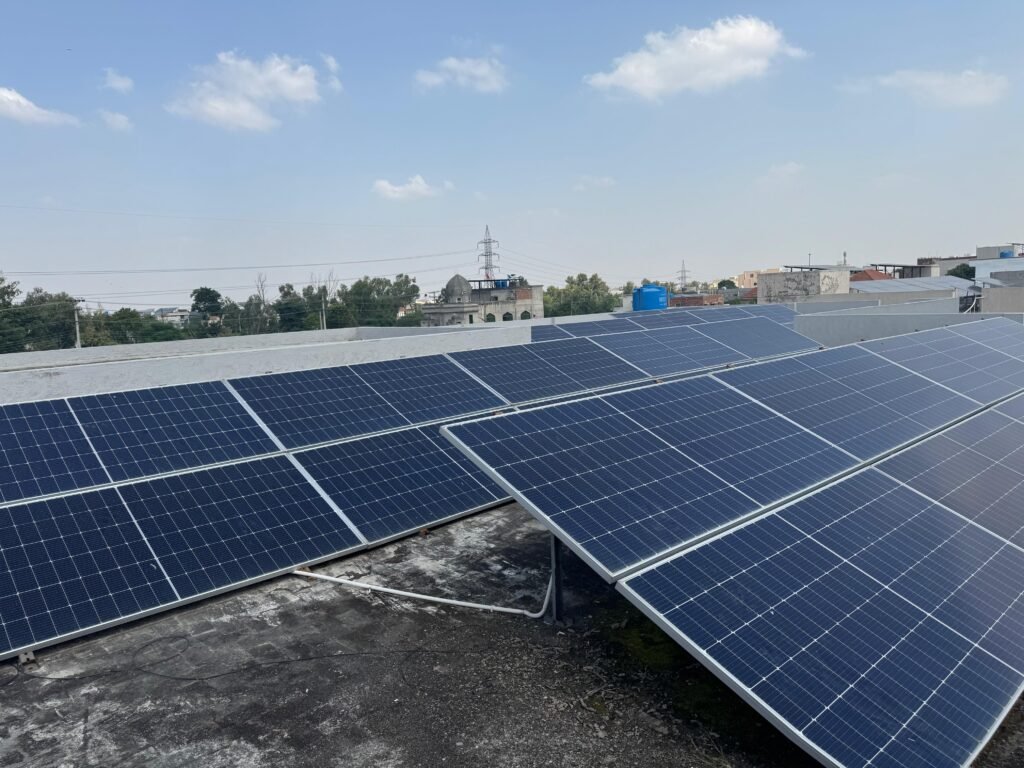

- 33 kW of Trina N-Type 590 W bifacial panels
- Dual inverters: 15 kW hybrid + 15 kW on-grid

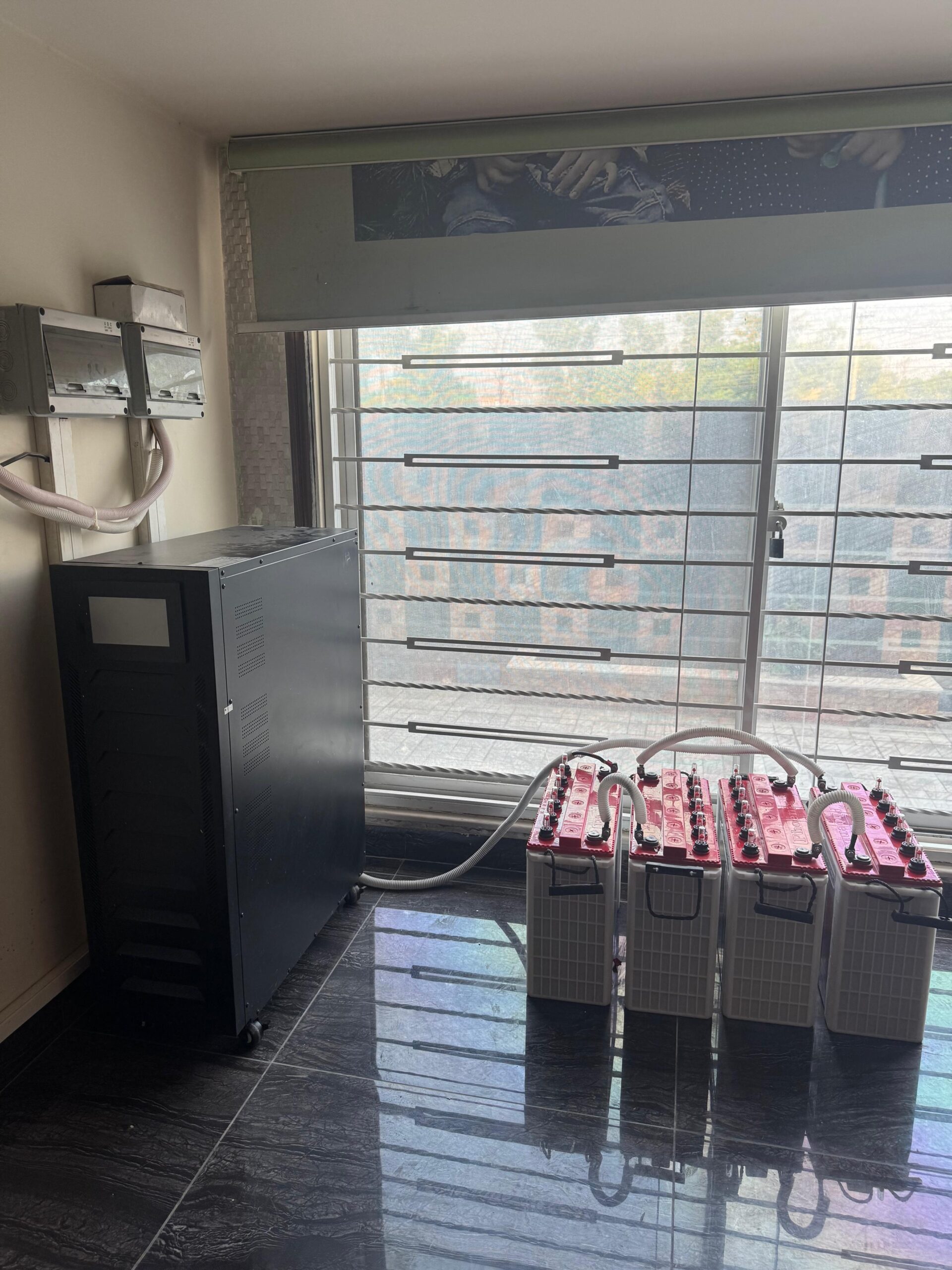

- 5 kWh tubular battery for load-shedding backup
- Net metering approved and activated
Performance
- Daily generation: 138.6 units
- Monthly generation: 4,158 units
- Annual generation: 50,589 units
- Carbon offset: about 6.105 tonnes per year
Figures are the system’s design output; actual production varies with season and shading.
What this means under 2026 net billing
The battery is what makes this design hold up under net billing, in force for new connections since 9 February 2026: daytime surplus is stored and used in the evening at the full tariff of roughly Rs 55 to 65, instead of being exported at about Rs 11. Backup through load-shedding is the reason most Lahore homes buy the battery in the first place, so it sits outside the solar payback, which at our current rates is 2 to 3 years. Connections approved under net metering before that date keep their original terms. Read our guide to net metering versus net billing in Pakistan.
Location
This installation is in DHA Phase 1, Lahore. See our DHA Lahore page for more local projects and typical system sizes, or check the Solar system prices by size at SNM’s published rates.
